Overview

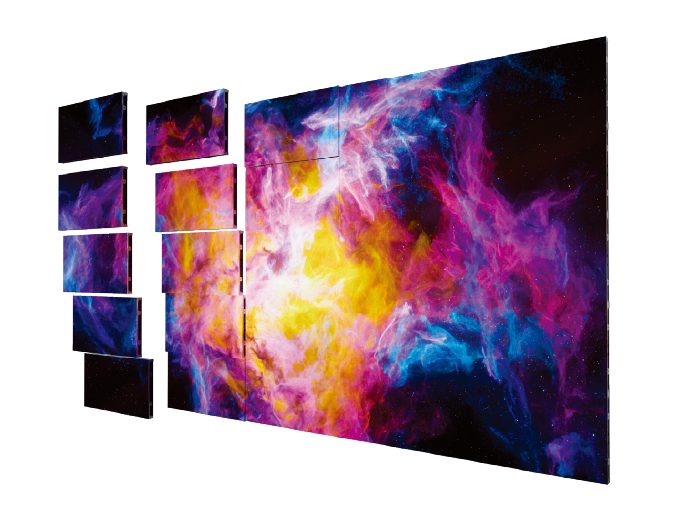

55″ Of Spectacular Engineering
Designed as a cost effective, more energy efficient, longer lasting alternative to the popular 55" LCD video wall panel.
Colour Accuracy
Enhancing LED technology with superior colour purity and a wide colour gamut produce vibrant.
Fixed Resolutions Possible
Custom resolutions or 1080p and 4K UHD resolutions available.
VESA mount compatible
The industry standard 400mm x 400mm VESA mount attaches to the Edge in a matter of seconds for quick and easy mounting.
SPECIFICATIONS
Category
Module Resolution(WxH)
Unit Composition(WxH)
Cabinet Resolution(WxH)
Average Power Consumption
Cabinet Weight(kg)
Contrast Ratio
Brightness(nits)
| M55A12 | M55A15 | M55A18 | M55A25 |
| 240x270 | 192x216 | 160x180 | 120x135 |
| 4x2 | 4x2 | 4x2 | 4x2 |
| 960x540 | 768x432 | 640x360 | 480x270 |
| ≤200 | ≤180 | ≤150 | ≤140 |
| 15.8 | 15.8 | 15.8 | 15.8 |
| 6000:1 | 6000:1 | 6000:1 | 6000:1 |
| 0~600 | 0~600 | 0~600 | 0~700 |
|
