Overview

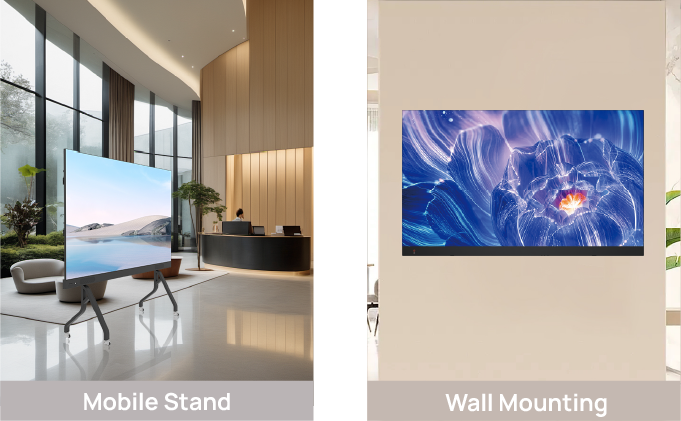

Versatile Installation
This product supports both wall mounting and mobile stand installation methods, allowing you to easily place it according to the installation location.
Quick Maintenance
The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

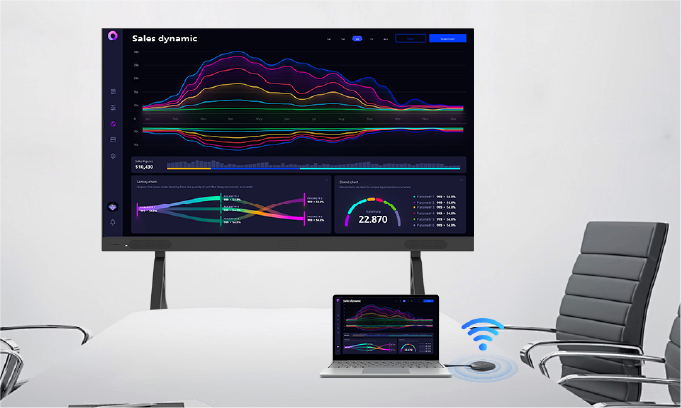

Wireless Screen Sharing
Use wireless dongle to make a fast sharing.
Remote for Easy of Use
Easy to adjust volume, brightness, open file to play.
High Performance with Android Platform
Equipped with Android 11 (2K) or Android 13 (4K) open platform, supporting the installation of various applications to meet your needs.
SPECIFICATIONS
Category
Pixel Configuration
Display Size (mm) (WxH)
Overall Weight (kg)
Brightness (nits)
Color Temp (K)
Avg.Power Consumption(W)
| D-MAX108C12(2K) | D-MAX136C15(2K) | D-MAX163C18(2K) | D-MAX216S25(2K) | D-MAX136C07(4K) | D-MAX163C09(4K) | D-MAX216C12(4K) |
| COB | COB | COB | SMD | COB | COB | COB |
| 2400×1350 | 3000×1687.5 | 3600×2025 | 4800×2700 | 3000×1687.5 | 3600×2025 | 4800×2700 |
| 80 | 120 | 172 | 320 | 120 | 172 | 320 |
| 0~600 | 0~600 | 0~600 | 0~600 | 0~1000 | 0~600 | 0~600 |
| 2000~12000 | 2000~12000 | 2000~12000 | 2000~12000 | 2000~12000 | 2000~12000 | 2000~12000 |
| ≤380 | ≤540 | ≤780 | ≤1530 | ≤1200 | ≤870 | ≤1530 |
|
